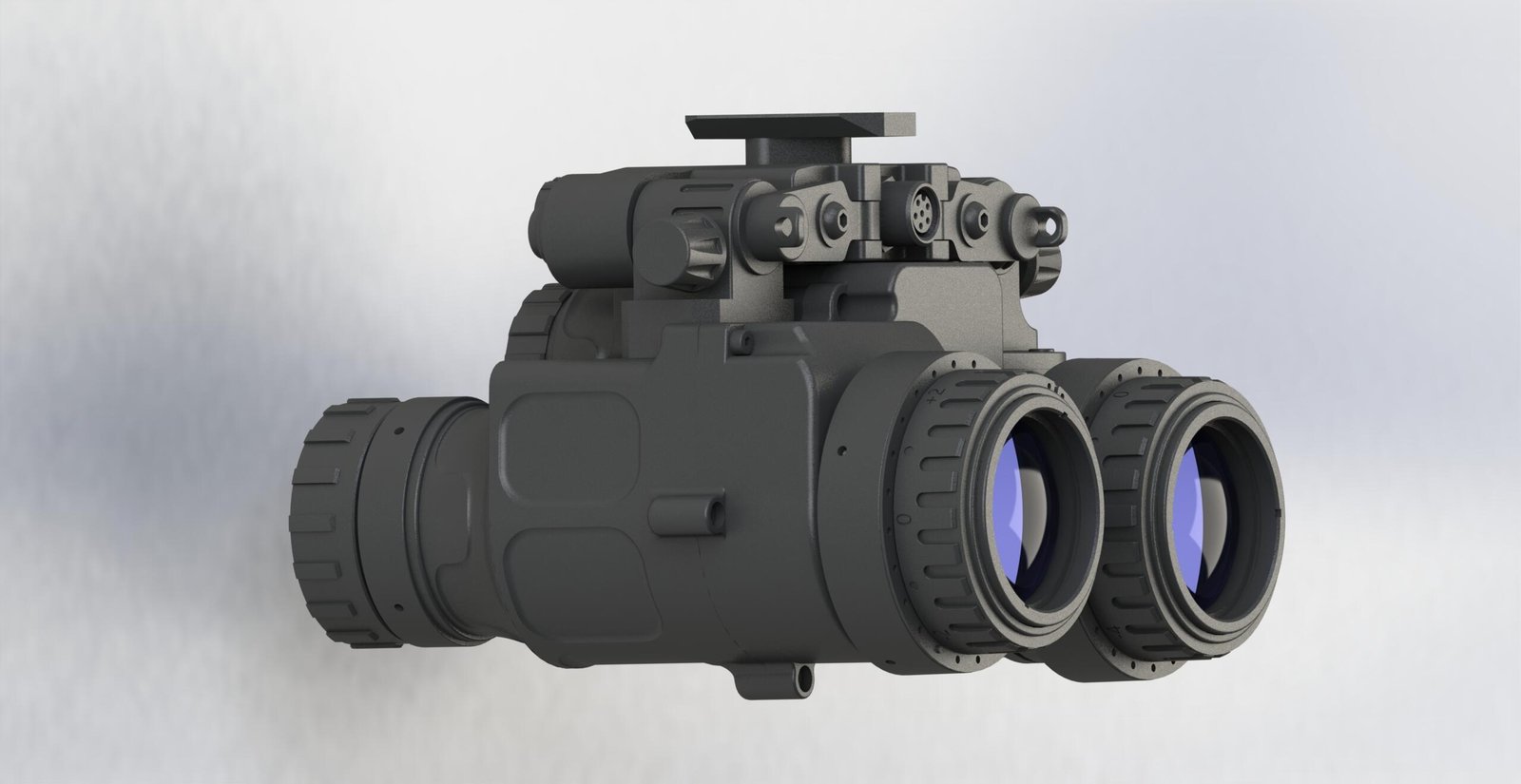

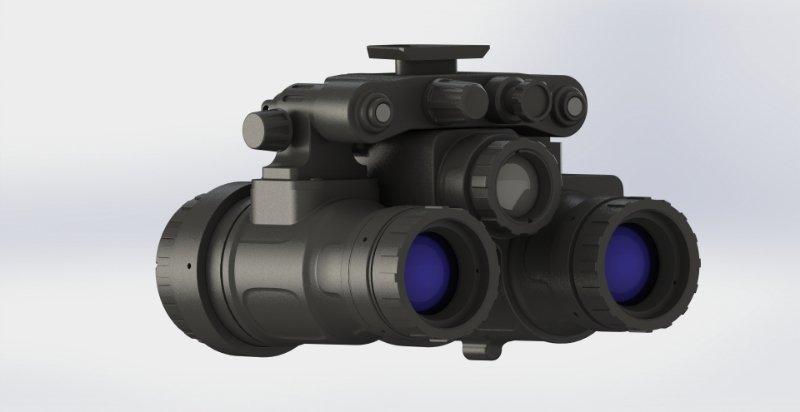

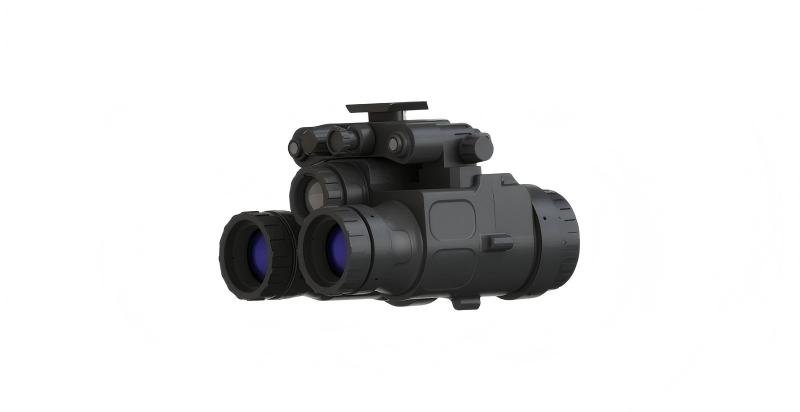

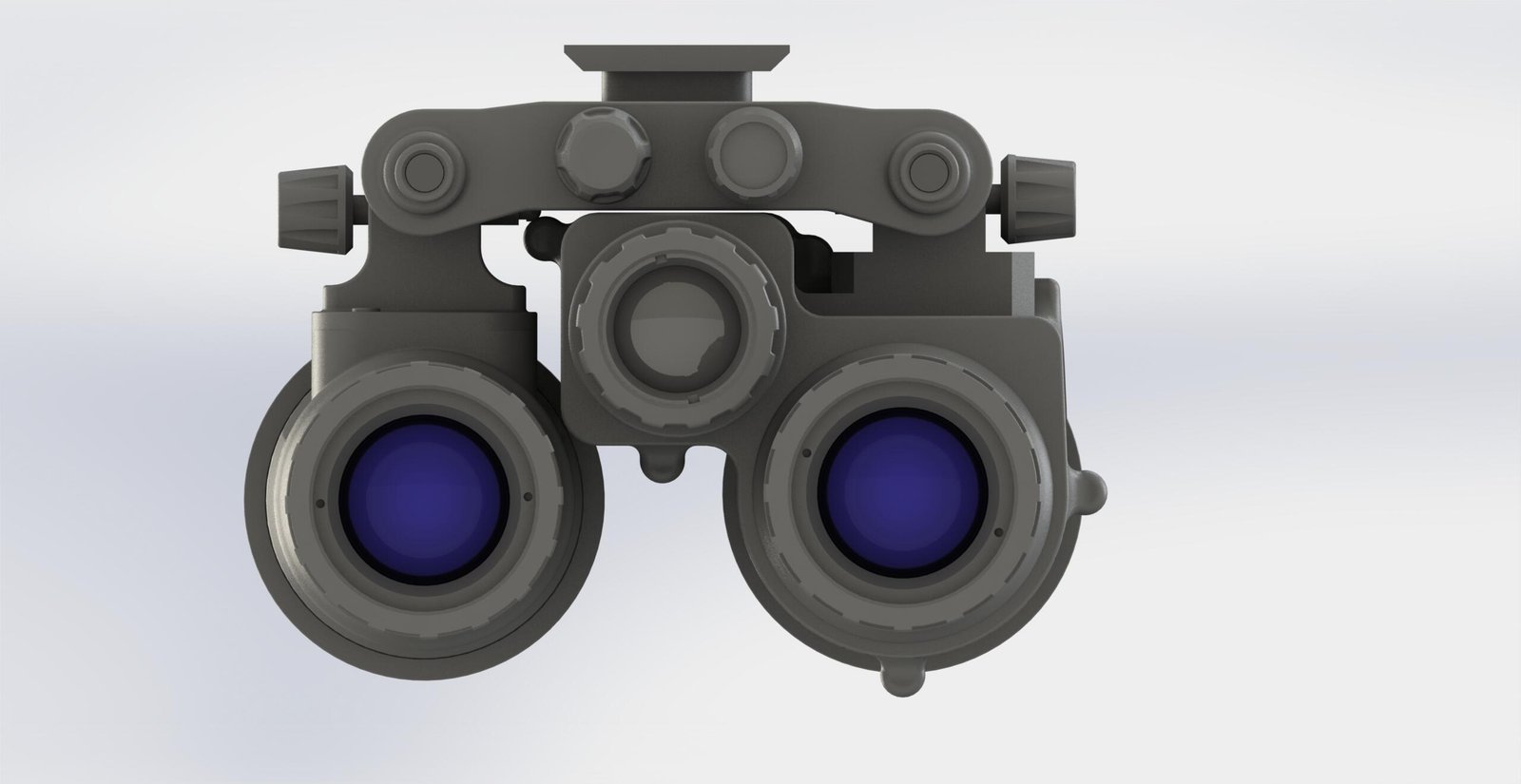

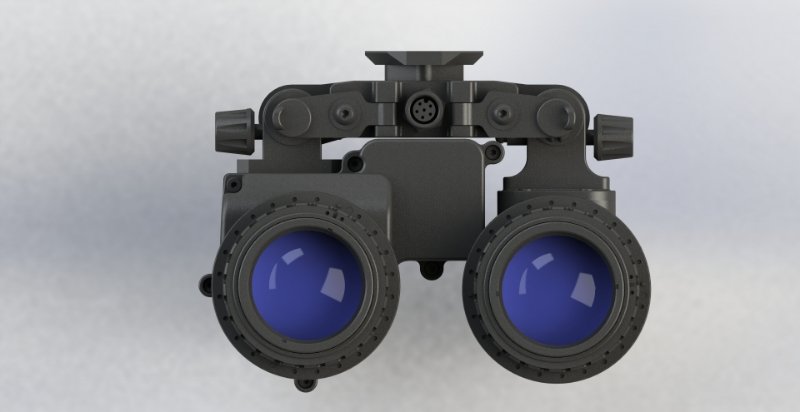

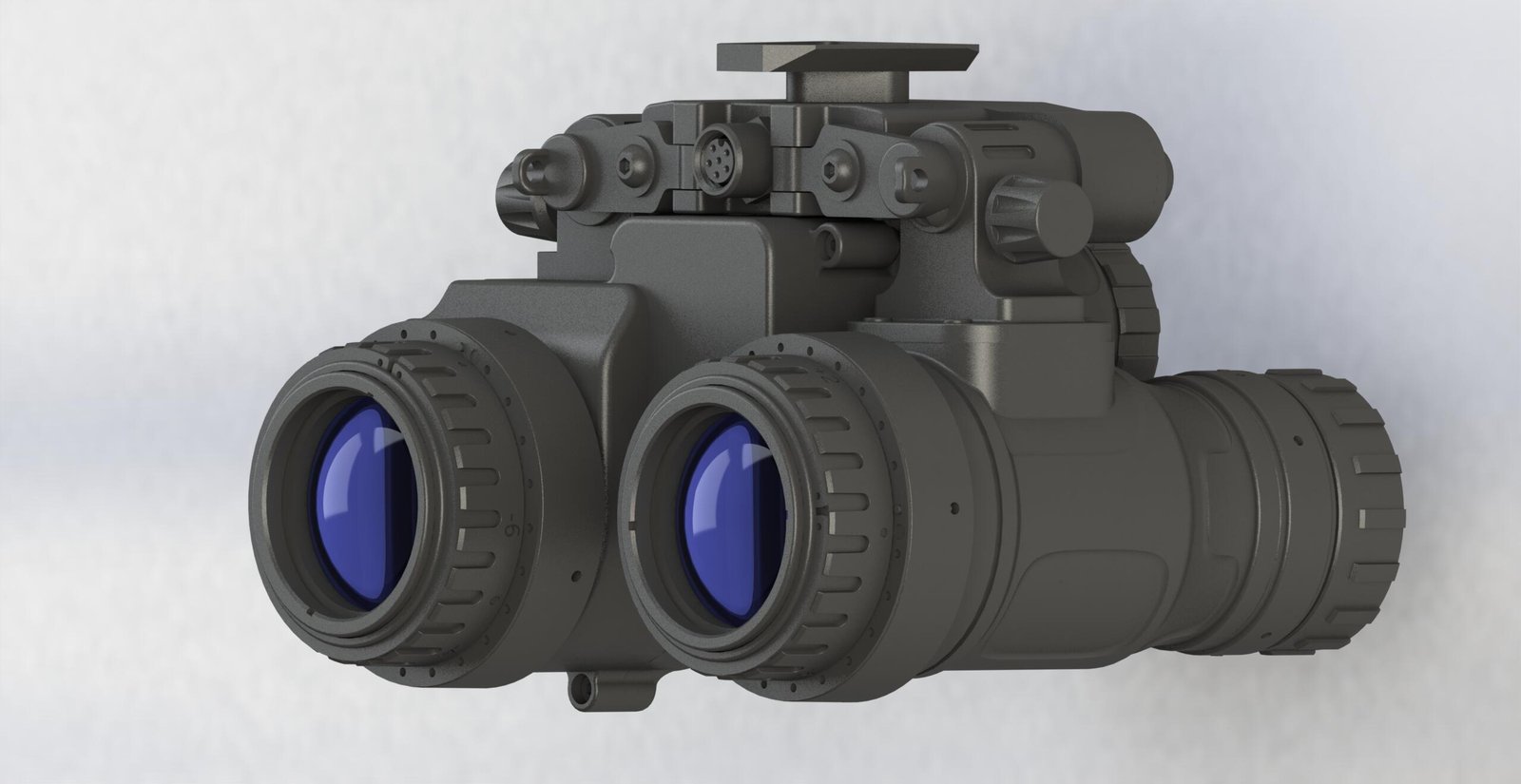

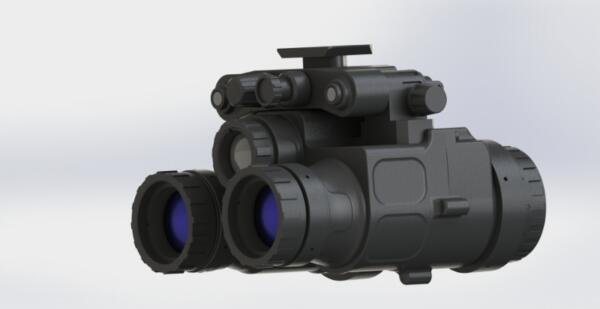

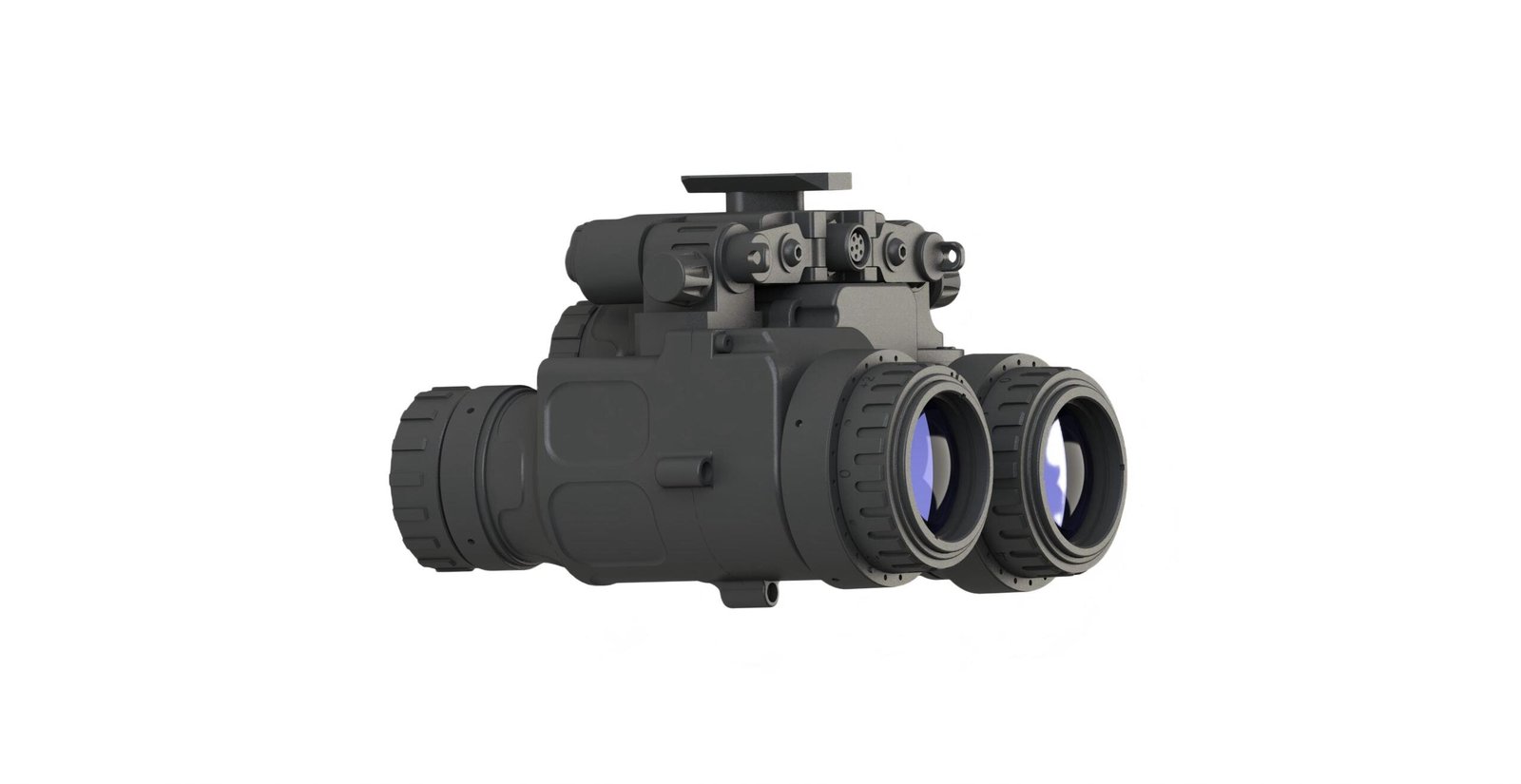

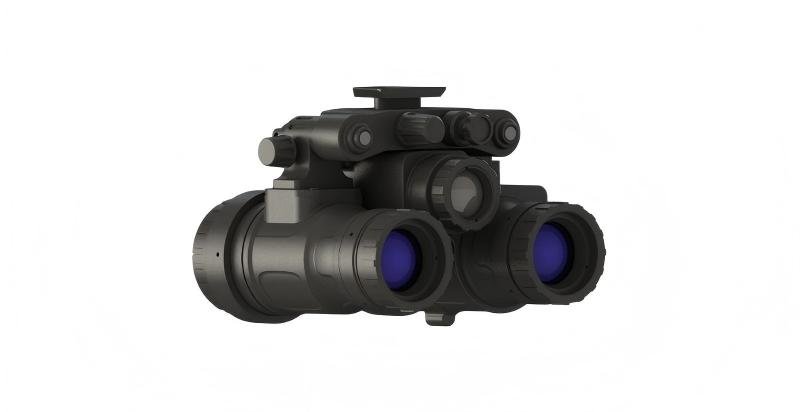

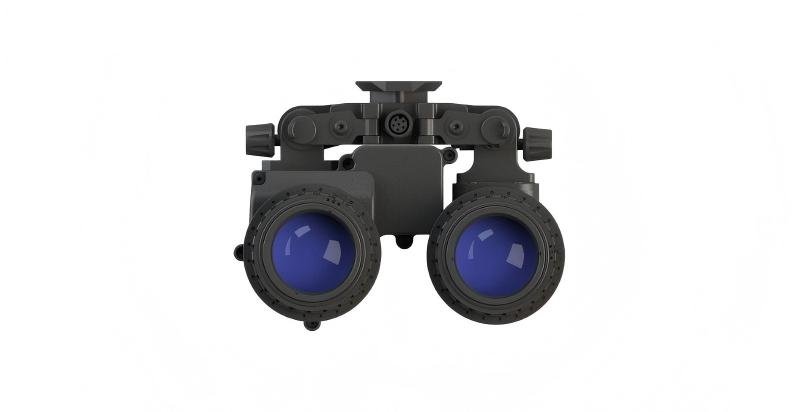

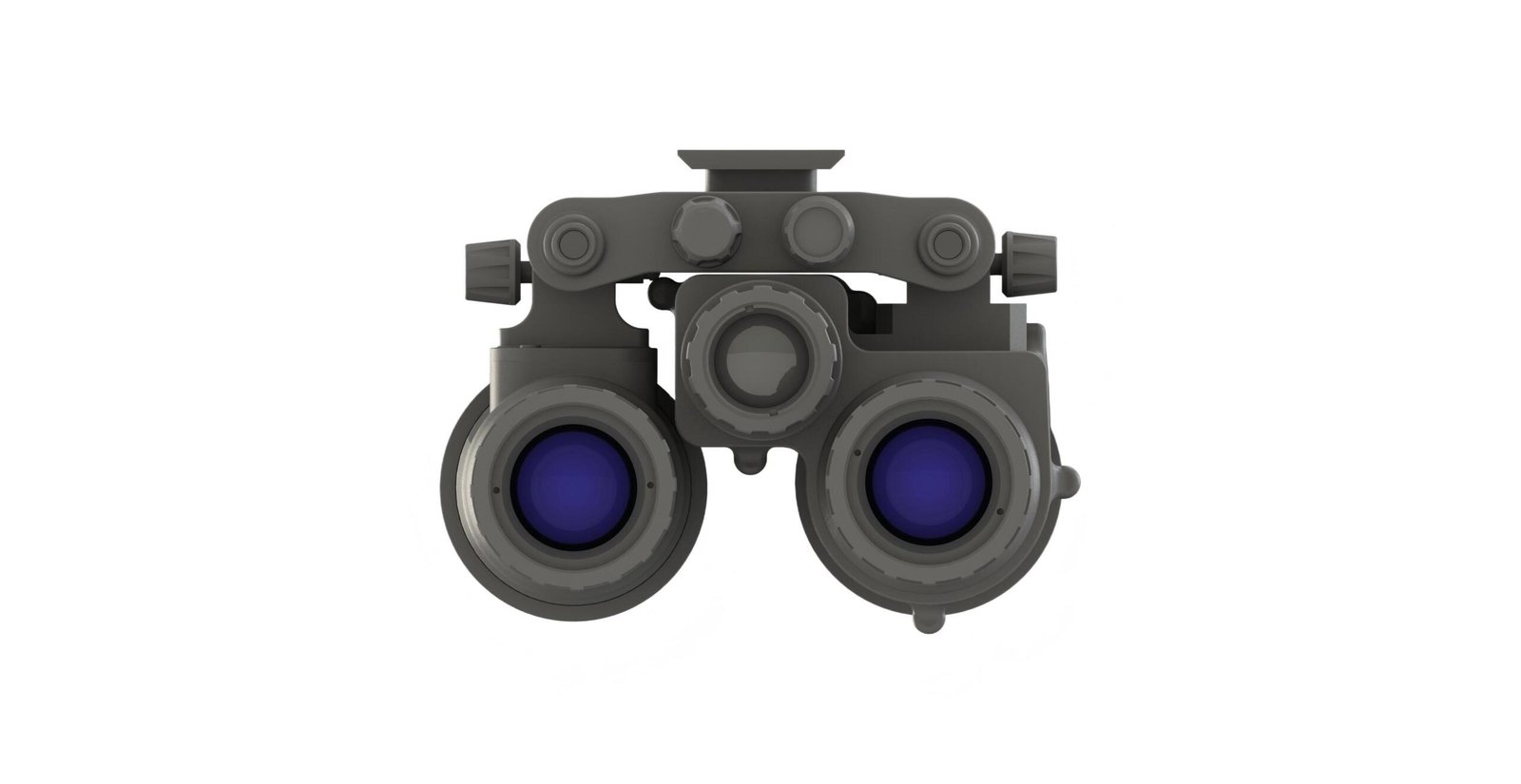

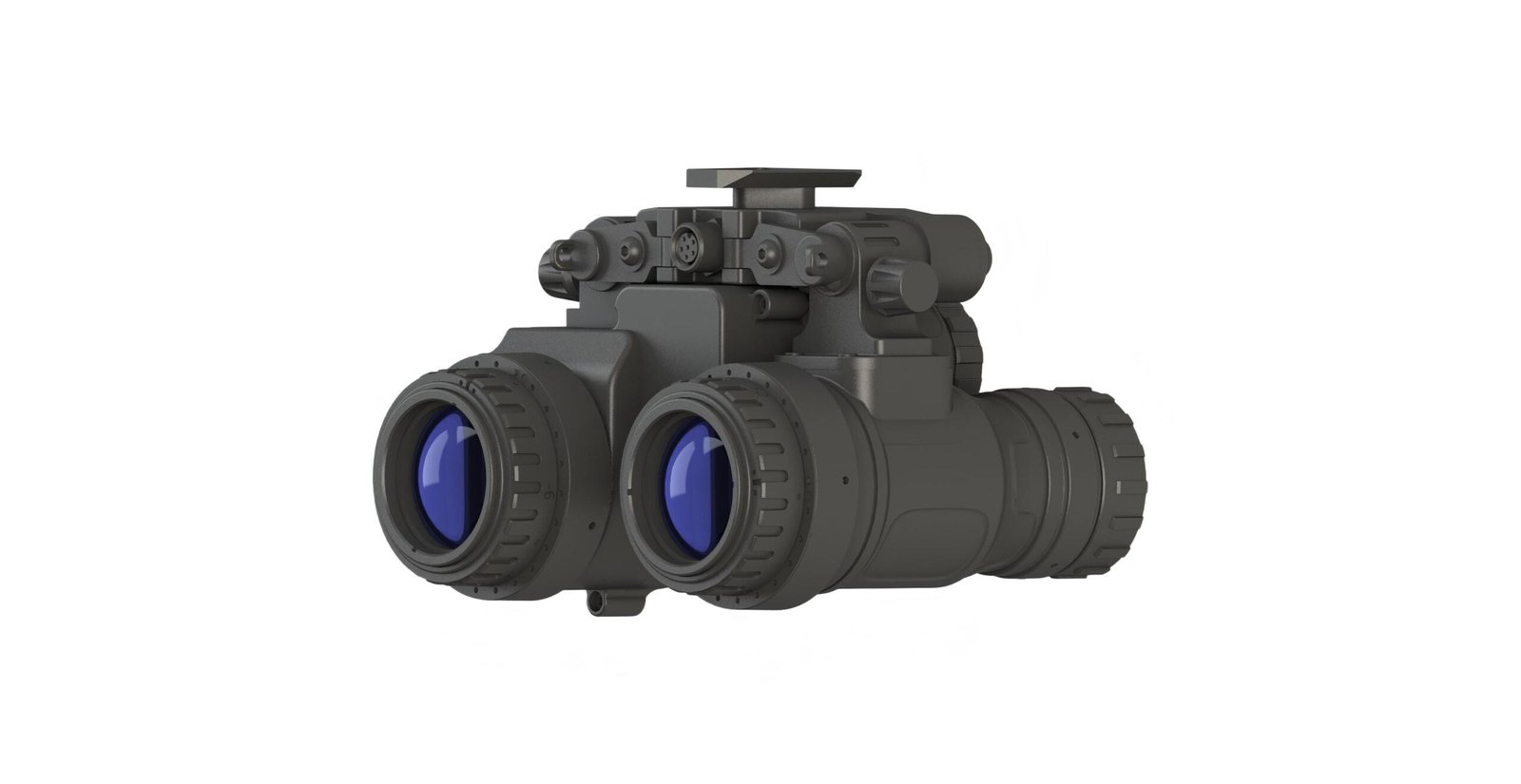

Fusion Binocular Night Vision Goggle
This fused binocular night vision goggle is compact, lightweight and portable. Usable handheld or head-mounted, it integrates infrared imaging and micro-imaging technologies. It provides operators with rich observational information and greatly enhances capabilities for field detection, observation and target discovery.
Technical Specifications
Project Proposal Overview
Our preliminary design directions are as follows:
- Infrared Core Module & Control Circuit: Design the infrared module (with image mode control, WiFi, electronic compass, photo/video/playback…and so on) and low-light control circuit as independent systems. Advantages: simpler operation, easier lightweight/universal shell design, optional infrared modules (different manufacturers/resolutions), better power consumption control.
- Optical Design: Base on parameters: low-light FOV ≥ 46°, infrared FOV ≥ 31°×23°, eye relief ≥ 25mm, exit pupil diameter ≥ 14mm; minimize system distortion.
Image Modes & Near-far Adaptability: Main modes: Low-light Only, Infrared Only, Fusion, Outline, Highlight, Breath. Internal circuit has fusion effect near-far compensation adjustment (user-switchable).
| / | ITEM | Parameters | |
| 1 | Visual Magnification | 1.0X ±5%； | |
| 2 | Diopter | -4～+2 SD； | |
| 3 | Weight (without battery compartment) | ≤640g； | |
| 4 | Optical Axis Parallelism | Divergence ≤ 60 ′ High/Low ≤ 20 ′ Convergence ≤ 20 ′ | |
| 5 | Mainframe External Dimensions (without eyecups) | 120x110x90mm | |
| 6 | Power Supply | External battery pack power supply (2*18650 batteries) | |
| 7 | uninterrupted working time | ≥6h | |
| 8 | Image Fusion | ≤10 ′； | |
| 9 | IR Illuminator | 850nm ； | |
| 10 | Bright light protection function | Support； | |
| 11 | Protection Rating | IP67； | |
| 12 | Operating Temperature | -40℃~+50℃; | |
| 13 | Display Mode | White heat/black heat/green heat/rainbow/metallic, Lowlight Only ,Fusion, Outline, Highlight, Breath. | |
| 14 | housing material | PEEK+30CF | |
| 15 | IR Image Electronic Zoom | Support； | |
| 16 | E-Compass | Support； | |
| 17 | Pitching Indication | Support； | |
| 18 | Photo Shooting | Support； | |
| 19 | Video Recording | Support； | |
| 20 | Playback | Support； | |
| 21 | WIFI | Support； | |
| 22 | USB data transfer | Support； | |
| 23 | Distance-dependent parallax compensation | Support； | |
| Low light parameters | |||
| 1 | Focusing range | 250mm~ ∞ ; | |
| 2 | Low light field of view | ≥46 ° ; | |
| 3 | Gain adjustment | Manual gain adjustment; | |
| 4 | Focusing method | Manual focus; | |
| 5 | IIT | Gen 2+ or Gen 3 | |
| Infrared parameters | |||
| 1 | FOV of Infrared | 31°x23 ° ; | |
| 2 | Brightness adjustment | Manual adjustment; | |
| 3 | Focusing method | Auto Focus; | |
| 4 | Detector | 384×288/640×512/1024×768 @12um(Optional) | |
| 5 | Display resolution | ≥1024×768 @11.4um | |
| 6 | Fusion delay time | ≤40ms | |
